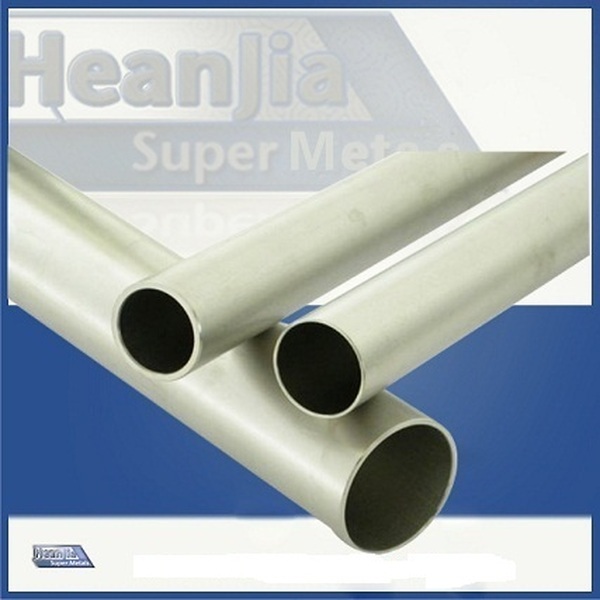

Stainless Steel 316L Tube

Heanjia Super Metals Co., Ltd is a professional manufacturer and supplier of Stainless Steel 316L Tube known as austenitic stainless steel alloy. It offers tremendously high resistance to pitting and crevice corrosion in the chloride conditions. With its austenitic structure it imparts extremely large hardness lower than cryogenic temperature ranges. It offers stress to rupture, large tensile strength and creeping at the elevated temperature ranges.

Specification
Thickness 1-20mm
Out Diameter 16-219mm

Chemical composition of stainless steel grade 316L Tube
C Mn Si P S Cr Mo Ni N
Min
Max -
0.03 -
2.0 -
0.75 -
0.045 -
0.03 16.0
18.0 2.00
3.00 10.0
14.0 -
0.10

Physical properties of stainless steel grade 316L Tube
Density(kg/m3) Elastic Modulus (GPa) Mean coeff. Of expansion (0-100°C) (µm/m/°C) Thermal conductivity (W/m.K) at 100°C Specific heat (0-100°C) (J/Kg.k) Electric resistivity (nΩ.m)
8000 193 15.9 16.3 500 740

Mechanical properties of stainless steel grade 316L Tube
Tensile Strength (MPa) Yield Strength 0.2% Proof (MPa) Elongation Hardness
485 170 40 95 (HR) 217 (HB)

Characteristics of stainless steel grade 316L Tube
1. Tremendous resistance to corrosion in the various media and oxidation
2. Excellent weldability
3. Highly tough

Applications of stainless steel grade 316L Tube
1. Medical equipments
2. Marine Operations
3. Fasteners
