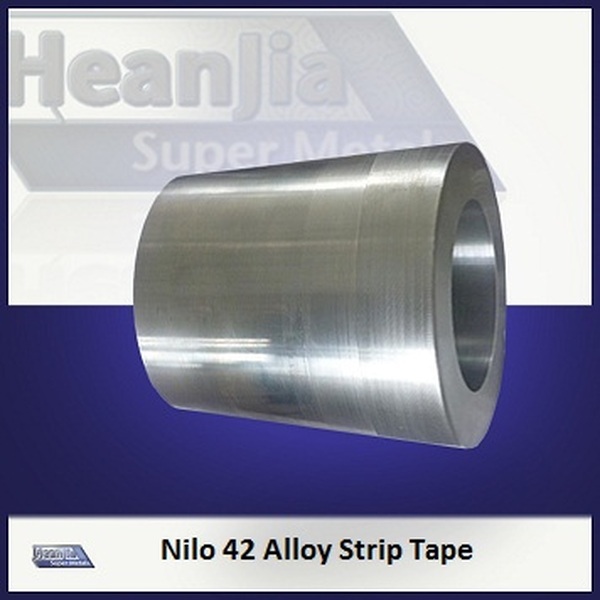

Nilo 42 Tape

Nilo 42 Tape comprises of steady coefficient of thermal expansion at the various ranges of temperatures and possesses negligible expansion up to 300°C and high magnetic permeability. It is widely employed in the aerospace industries and production of thermostat rods and bimetallic chips.
Specification
Tape Size Thickness: 0.05mm above, Width: 2mm above

Chemical composition of Nilo 42 Tape
Alloy N Mn Si Cr Fe
Alloy 42 42 0.6 0.02 0.05 Balance

Mechanical Properties of Nilo 42 Tape
Temp. Tensile Strength Yield Strength Elongation on 50mm Reduction Area%
20 °C 490MPa
250 MPa
43 72
100°C 450MPa
210 MPa
43
72
200°C 450MPa
130 MPa
43 72
300°C 410MPa
110 MPa
44 72
Characteristics of Nilo 42 Tape
1. Lower thermal expansion
2. Good Magnetic Permeability
Applications of Nilo 42 Tape
1. Lead cables
2. Electronic operations
3. Glass sealing and vacuum equipments
