Inconel 601 Demister Pad supplier in Cambodia

Inconel 601 Demister Pad offers superior resistance to the oxidizing acidic solutions. It provides excellent security from the corrosion due to mineral and organic acids. It resists the stress corrosion cracking in the chloride conditions at the high temperatures. It offers high strength towards caustic solutions. For details.

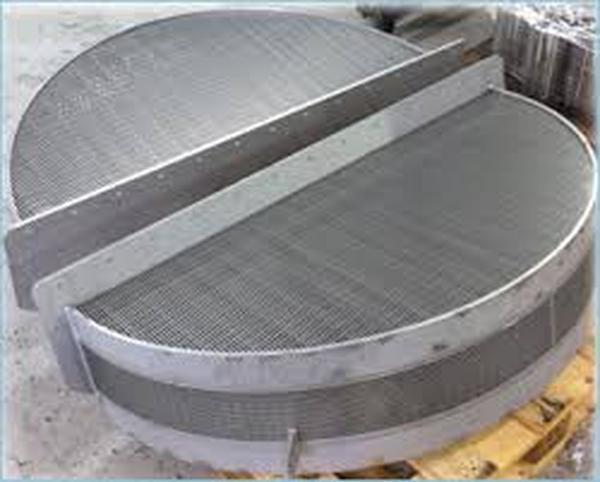

A dense Inconel 601 Demister Pad is utilized on the top level of a vessel to remove the entered liquid that ensures the highest degree of separation. The pad attributed lattice arrangement of packed material providing a strict flow area to the wet gas jet. When the fluid enters in the gas and comes in contact with mesh, the droplets are eradicated immediately. So the size of droplets increases as the stream goes higher in the column. It offers precise separation of liquid from the gas.

On the base of process conditions and isolation functionality needed, variant thickness, constituents and mesh densities are offered to provide our customers the desired functionality.
Specification of Demister Pad
Type Density Kg/m3 Wire Surface Area m2 / m3 Wire dia. mm Free Volume
1 80 129 to 145 0.25 to 0.28 99.1
2 110 178 to 200 0.25 to 0.28 98.75
3 128 207 to 232 0.25 to 0.28 98.54
4 144 233 to 261 0.25 to 0.28 98.36
5 173 280 to 314 0.24 to 0.28 98.03
6 193 313 to 350 0.25 to 0.28 97.8
7 214 355 to 389 0.25 to 0.28 97.56


Properties of Inconel 601 Demister Pad:
1.Large removal capacity
2.Resistance to corrosion
3.Excellent formability and clean structure
