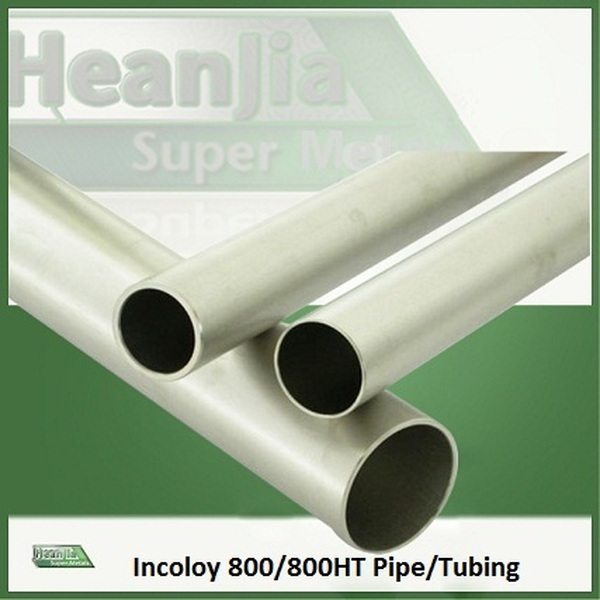

Incoloy 800HT Tubing

Incoloy 800H and 800HT Tubing are primarily used for elevated temperature strength and diverse corrosive media for extensive operations like high temperature reactions including carburization and oxidation. Its scaling resistance is noticed in the aggressive cyclic oxidation analysis at the temperature ranges of 1800oF to 2000oF.
Specification
Thickness 1-20mm
Out Diameter 16-219mm

Comparisons of Chemical composition of Incoloy 800HT Tubing:
Alloy % Ni Cr Fe C Mn Si Cu S Al Ti
800 Min. 30 19 0.15 0.15
Max. 35 23 Balance 0.1 1.5 1 0.75 0.015 0.6 0.6
800H Min. 30 19 0.05 0.15 0.15
Max. 35 23 Balance 0.1 1.5 1 0.75 0.015 0.6 0.6
800HT Min. 30 19 0.06 0.15 0.15
Max. 35 23 Balance 0.1 1.5 1 0.75 0.015 0.6 0.6
AI+Ti: 0.85-1.20

Resistance ability of incoloy 800HT Tubing:
• Carburization and sulphidation
• Nitridation
• Chloride stress corrosion cracking and inter - granular corrosion
• Sea water and acids
• Oxidizing and Non—Oxidizing salts

Applications of Incoloy 800HT Tubing:
1. Production components of baskets, trays and fixtures
2. Heat Exchangers and piping
3. Steam generator tubing in the nuclear power houses
