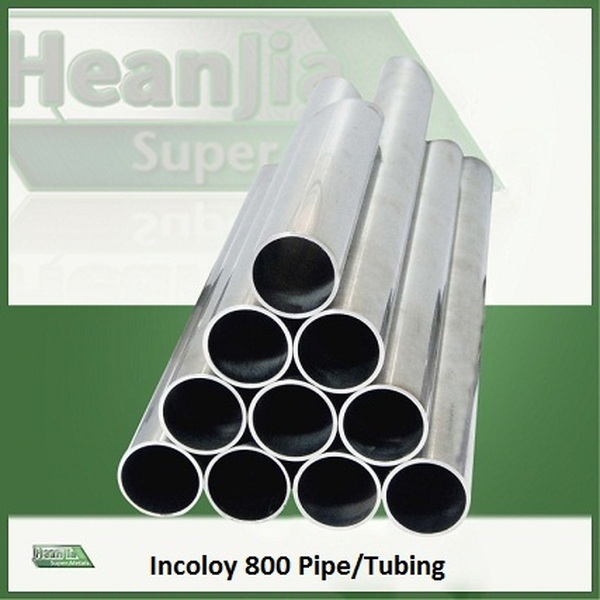

Incoloy 800 Tubing

Incoloy 800 Tubing has been used in the wide range of applications for its significantly high resistance to oxidation, carburization and other corrosions introduced in the elevated temperature conditions. It is also widely used in the industrial heating equipments systems. It offers large value of tensile strength at the high temperatures up to 2000oF or 1095oC.

Specification
Thickness 1-20mm
Out Diameter 16-219mm

Comparisons of Chemical composition of Incoloy 800 Tubing:
Alloy % Ni Cr Fe C Mn Si Cu S Al Ti
800 Min. 30 19 0.15 0.15
Max. 35 23 Balance 0.1 1.5 1 0.75 0.015 0.6 0.6
800H Min. 30 19 0.05 0.15 0.15
Max. 35 23 Balance 0.1 1.5 1 0.75 0.015 0.6 0.6
800HT Min. 30 19 0.06 0.15 0.15
Max. 35 23 Balance 0.1 1.5 1 0.75 0.015 0.6 0.6
AI+Ti: 0.85-1.20

Resistance ability of incoloy 800 Tubing: The Incoloy 800 Tubing offers resistance to following conditions in the normal as well as elevated temperatures:
• Carburization and sulphidation
• Nitridation
• Chloride stress corrosion cracking and inter - granular corrosion
• Sea water and acids
• Oxidizing and Non—Oxidizing salts

Applications of Incoloy 800 Tubing:
1. Manufacturing components of baskets, trays and fixtures
2. Heat Exchangers and piping
3. Steam generator tubing in the nuclear power houses
4. Paper pulp and digester liquid heaters
