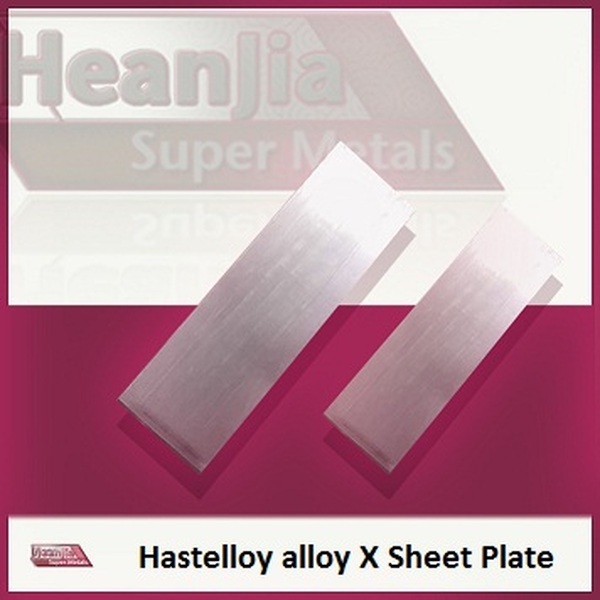

Hastelloy X Sheet

Heanjia Super-metals Co.,Ltd. supplies Hastelloy X Sheet with high quality and more reasonable price. Hastelloy X Sheet is a nickel-chromium-iron-molybdenum super alloy Sheet with outstanding high temperature strength, oxidation resistance, and fabricability

Chemical composition
Ni Mo Cr Fe W Co Mn C
Bal. 8.0-10.0 20.5-23.0 17.0-20.0 0.2-1.0 .5-2.5 1.0 max 0.05-0.15
P S Si Al Ti B Cu
0.04 max 0.03 max 1.0 max 0.50 max 0.15 max 0.01 max 0.50 max

Properties
Density g/cm3 Melting point °C Yield strength MPa Tensile strength MPa Elongation %
8.3 1260-1355 240-310 660-725 30

Specification
Sheet JIS C2521 Thickness: 0.05mm and above

Characteristic
1. Outstanding oxidation resistance through 2000° F
2. Resistant to carburization and nitriding
3. Excellent high temperature strength
4. Good resistance to chloride stress-corrosion cracking

Applications
1. Gas turbines
2. Petrochemical industry
3. Industrial furnaces
4. Heat treating equipment
5. Nuclear engineering
6. Jet engine combustion chambers
7. Aircraft cabin heaters

Manufacture Process
The manufacture of sheet is started with producing ingot by advanced vacuum melting process. The sheet production includes forging, rolling, annealing, acid-washing, polishing, etc. The sheet is produced to the required sizes. From the ingot to the final sheet, manufacture process is operated with high standard quality control system. There will be quality test for each batch of product, such as test to thickness tolerance, content, hardness, etc.

Packing Process & Transportation
Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
Transportation: By air or By sea

Other Terms
Minimum Order Quantity Manufacture Period Payment Terms
100 KG 10-15 Days (Small Quantity) 20-40 Days (Mass Quantity) L/C, T/T, Western Union
