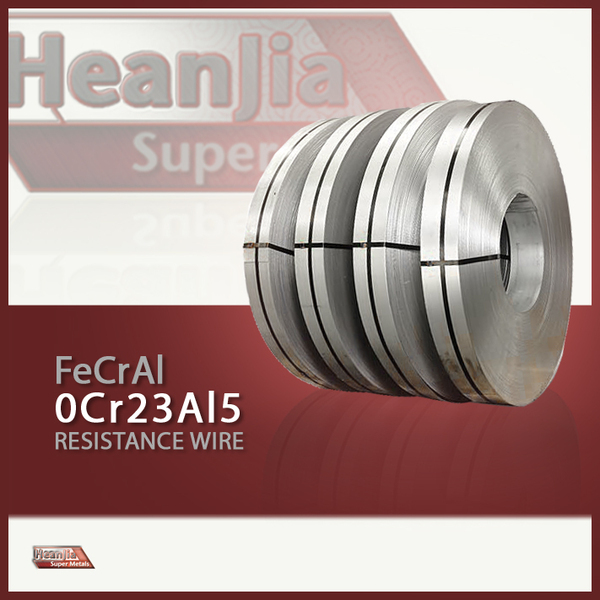

FeCrAl 0Cr23Al5 furnace resistance Tape

The FeCrAl 0Cr23Al5 furnace resistance tape comprises of large thermal firmness and mechanical features particularly for the high temperature operations up to 1250oC and better for using in applications requires large oxidation and extended performance.
Specification of FeCrAl 0Cr23Al5 furnace Resistance Tape:-
Tape Size Thickness: 0.05mm above, Width: 2mm above
Chemical Composition of FeCrAl 0Cr23Al5 furnace resistance Tape:-
Cr Al Fe Mn
20.5-23.5 % 4.2-5.3% Bal. ≤0.7
Physical Properties of FeCrAl 0Cr23Al5 furnace resistance Tape:-
Max Continuous Service Temp.of Element °C 1250
Density g/cm3 7.25
Resistivity Ω m2/m 1.35±0.06
Temp.Coefficient of Resistance 14.5
Melting point °C 1500
Tensile strength Mpa 637-784
Elongation % >12
Variation of area % 65-75
Bending frequency >5
Hardness 200-260
Micrographic Structure F
Magnetic Property Magnetic
Characteristic of FeCrAl 0Cr23Al5 Resistance Tape:-
1. Affordable large electric resistance.
2. Lower temperature coefficient of resistance.
3. Excellent performance temperature limit
4. Superior resistance to corrosion under high temperature
Applications of FeCrAl 0Cr23Al5 Resistance Tape: -
1. Electrical heating elements on commercial and domestic scale
2. Heating furnace, stove, dryer and electrical appliance
3. Mechanical manufacturing and other industrial fields.
