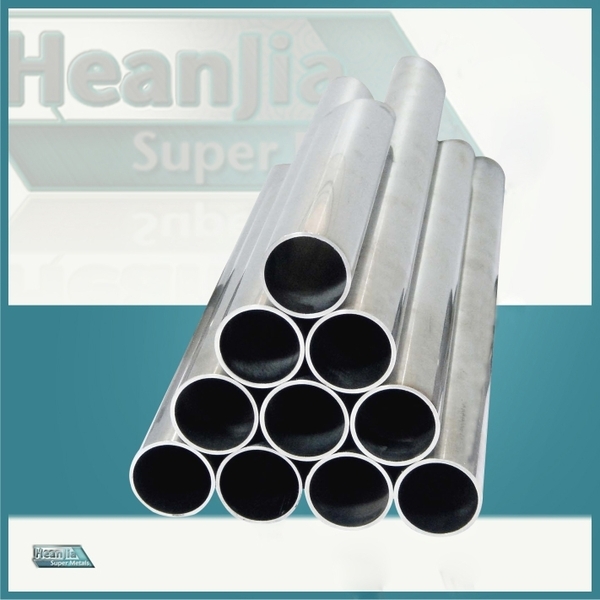

Copper Nickel Cu90/Ni10 Tubing

The highly resistive copper nickel alloy Cu90/Ni10 Tubingresists the corrosion produced by sea water and inhibits biofouling. It extensive properties such as ductility, toughness, excellent strength and low temperature electrical resistivty are purposeful in the underwater tasks, resistance wires etc.
Specifications
Thickness 1-20mm
Out Diameter 16-219mm

Physical properties of Cu90/Ni10 Tubing
Density 8.90 kg/dm3
Melting Point 1100-1145oC
Specific Heat 377 J/Kg/oK
Thermal Conductivity 50 W/moK
Coeff of linear expansion 10-300oC 17 10-6/°K
Electrical resistivity 19 micoohm.cm
Modulus of Elasticity 135 GPa
Modulus of Rigidity 50 GPa

Characteristics of Cu90/Ni10 Tubing
1. Immense resistance to seawater corrosion
2. Minor temperature coefficient of electrical resistivity
3. Ductile and firmness
Applications of Cu90/Ni10 Tubing
1. Sea Water condenser equipments
2. Automotive solutions
3. Marine applications
4. Coins and thermocoupling
