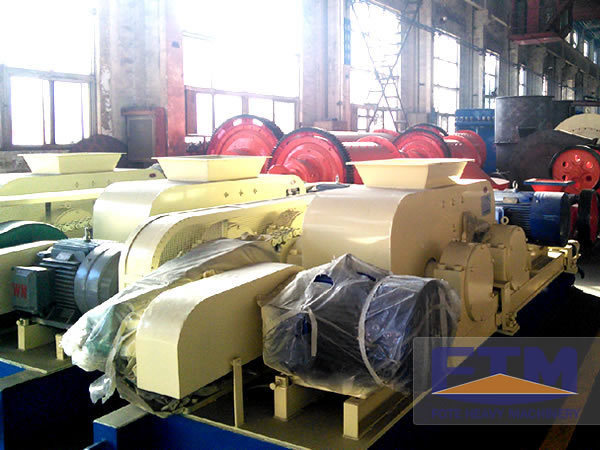

Coal Roll Crusher/Industrial Double Roller Crusher

Roll crusher is also known as double roll crusher, roll crusher, roller machine, roll crusher (double roll crusher) It is suitable for feed particle size less than 80mm finished 50 mesh size requirements-20mm crushing operations. pebbles, construction waste artificial sand; the mining crushing iron ore, quartz; the broken ceramic industry raw materials. Applicable in the cement, chemical, electric power, mining, metallurgy, building materials, refractory materials, coal and other industries brittle bulk materials crude, intermediate crushing, feeding large size, discharge size adjustable on the compressive strength ≤ 160MPa the material is crushed. Especially the coal industry, the use of the machine crushing raw coal that after hearing in addition to iron, purify, could be directly crushing, crushing materials, uniform particle size, over broken low, thus simplifying the coal preparation process, reduce the investment and production costs.

Structure of Industrial Double Roller Crusher Coal Roll Crusher:

1. Industrial Double Roller Crusher/Coal Roll Crusher is mainly composed by roller, roller wheel support bearing, compressing and regulating device and a driving device etc..

2. the driving mechanism is composed of two motors, through the triangle belt transmission to the groove wheel drag roll wheel, rotating in the opposite direction. In the crushing material, material from the feed inlet through the roller, the rolling and crushing, broken after the finished product is discharged from the chassis below.

3. the grain size regulation: wedge or gasket adjusting device is arranged between the two roller, top wedge device with adjusting bolt, when the adjustment bolt will wedge block upward pull up, wedge will activities roller top from fixed wheel, namely two roller gap becomes larger, the grain size change, when the wedge block down, movable roller wheels in the compression spring under the action of two wheel clearance decrescent, the grain size smaller. The pad device through the number or the thickness of the pad to adjust the size of the grain size, when adding gasket two roll wheel gap bigger, when reduce gasket two roll wheel clearance decrescent, the grain size smaller.

4. for the sake of safety, the transmission part should be installed automatically according to the actual situation of the safety cover.

Henan Fote Heavy Machinery Co., Ltd. is a professional mining machinery manufacturer and supplier in China. What gives us even greater strength is our R&D capabilities. We have 55 dedicated R&D engineers, who have already created products with 28 patents, including a limestone crusher with one of the largest outputs available and a crusher rotor and hammer head with up to four times the life span of those of our competitors, a machine now popular in more than 20 countries. Our crushers are so strong, they can be used for up to 20 years. Welcome to contact or visit.
