China Cement Mills/Cement Mill Machinery

Cement mill is the key equipment for grinding after the crush process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrousmetal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials. Cement mill, a horizontal type and tubular running, has two warehouses. It runs along the outside gear. Materials spirally and evenly enter the first warehouse along the input hollow axis by input devices.

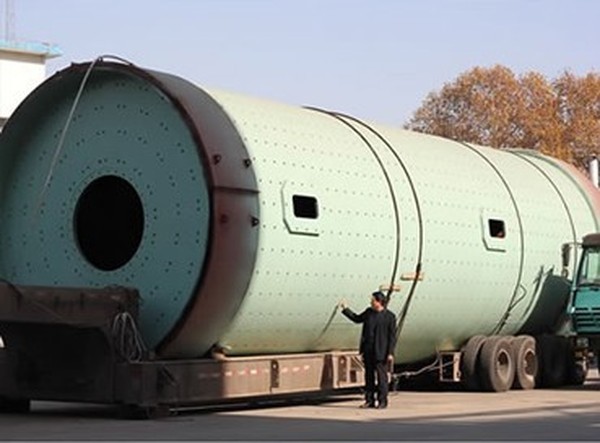

cement mill

Maintenance of Cement Mill Machinery/China Cement Mills:

1. Cement Mill Machinery/China Cement Mills base on the processing of bearing surface at the same horizontal plane, the center distance tolerance 1 mm, not parallel to the longitudinal center line degree of deviation 0.5 mm, horizontal center line deviation per meter 0.5 mm.

2. tile seat angle spherical contact surface should be then evenly; each 50 mm of not less than 1-2 points; hollow shaft contact with the tile surface should be 90 ° -100 ° per square inch less than 2 points, journal and bearing two nearly the same side of space.

5. the cement mill pinion gear center line and parallel to the center line of its deviation per meter is not greater than 0.2 mm. Tip clearance 1 / 4 module, tooth side gap 1.06 ----- 1.8 mm, cement mill tooth surface contact area of not less than 50% of tooth length, tooth-high 40%

4. cement mill liner installation should be press fitted cover, cylinder liner from Population Division, beginning with the assembly requirements, the screws should be uniform to tight and not leaking. Rubber liner with the prohibited gap, there are gaps Department to use sponge blocked.

3. cement mill cylinder flange and the front cover of the mating surface should ensure good contact, are not allowed to add gaskets, two different hollow shaft axis degree of tolerance is less than 0.8 mm. Large ring gear connected with the cylinder end cap assembly correction should be strong thrust, ring gear of the radial oscillation is not more than 0.5 mm, the axial oscillation is not more than 0.84 mm.

cement mill
